T17480 5000 PSI Hydraulic Cylinder Leak Test Fixture for GE FDL Engines 230 Volt

T17480 5000 PSI Hydraulic Cylinder Leak Test Fixture for GE FDL Engines 230 Volt
lView fullsize image

T17480 5000 PSI Hydraulic Cylinder Leak Test Fixture for GE FDL Engines 230 Volt

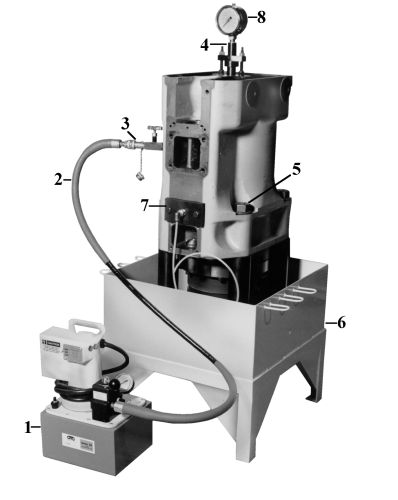

This fixture is supplied with all the hardware, hydraulic pump and necessary accessories to completely test rebuilt cylinders at 5000 PSI. Follow the GE instructions for exact details of the test.

Please specify T17380 for a 115 Volt Test Fixture, or T17480 for a 230 Volt Fixture.

1 T14320  Motor Driven Pump 115 Volt
  T14330  Motor Driven Pump 230 Volt
2 T10200  Hose
3 T17590  Valve and Plug Adapter
4 T17580  Gauge and Dummy Injector Assembly
5 T50230  Hold Down Bolt and Washer (4 required)
  T17660  "O" Ring for Piston (6 required)
  T19350  45 degree Test Valve (2 supplied)
  T19360  15 degree Test Valve (2 supplied)
  T21730  "O" Ring for test valves (12 supplied)
6 T17490  Stand
7 T17500  Test Fixture
8 T17700  Gage only 0-10,000 PSI
9 T50240  Set of Blanking Plates - 1 water inlet and 1 water outlet
