T85712 Connecting Rod Torque Kit With 25 1 Torque Verifier For GEVO Engines
T85712 Connecting Rod Torque Kit With 25 1 Torque Verifier For GEVO Engines

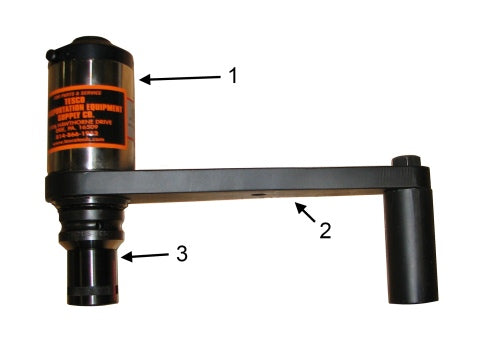

This kit contains a 25:1 verifier with anti-wrap up feature, a custom reaction arm and a 24MM Sweep Socket to apply the pre-torque and angle of turn per OEM instructions to Evolution Connecting Rod Bolts. After the pre-torque is applied the machinist can mark a position on the conn rod to to line up with the green line on the socket and then apply torque until the hash mark lines up with the red line on the socket.
| 1 | T85712V | 25:1 Verifier with Anti Wrap-up Feature |
| 2 | T85712RA | Reaction Arm |
| 3 | T85712S | 24MM Sweep Socket |
